PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports

PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports
PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports

Grote Afbeelding :  PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports

Productdetails:
Plaats van herkomst: China
Merknaam: GST
Certificering: ISO9001,TLC
Modelnummer: GJS20-DR02A-6poort
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 100
Prijs: 20usd~ 28usd
Verpakking Details: KARTONNEN 6 stks/doos
Levertijd: 3-5 dagen
Betalingscondities: TTLC West Union
Levering vermogen: 10000 reeksen per maand
Contact
Gedetailleerde productomschrijving
Materiaal: PP.ABS Dienblad: 4
Buffer: bufferopslagvezel houder: 12
Haven: 6 Omgevingstemperatuur:: -30 °C ~ +60 °C
Markeren:

PP ABS fiber optic splice closure

,

fiber optic splice closure 6 ports

,

fiber optic closure temperature resistant


IP68 Grade Fiber Optic Joint Closure 3 in 3 out 96 Fibers with 6 round ports


Description

GJS20-DR07A can be used to splice the fibers and put in aerial, manholes. The dome is made from high-strong plastics PP( polypropylene) and formed the shape with mold plastics under high pressures inject. High mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life. Application: 1. suitable small munber Fiber cable spl





Application:

1. suitable small munber Fiber cable splice.
2. easy operation with small size. Eazy holding everywhere
3. suitable Maintenance, it is convenient to handle..
4. it can be reopened many times
5. it can be protect water in


Feature

1. Protection grade:IP68
2. Material:PP,ABS
3. Entry ports: 2x12mm round
4. Core number: max 6/12
5. Maximum Trays: 1trays
6. Dimension (HxD):230mm *65 mm
7. Environment temp: :-30℃~+60℃
8. Pressure:70kPa~106kPa
9. Sealing:Heat shrinking port +mechanical seal dome
10. Quality warrenty:2 years
11. Life span:more than 20 years
12. Weight:0.4-0.6Kg
13. Suitable for duct ,overhead buried .
14. Material:Higt strength polypropylene(PP)


Specifications:



Description Type Quantity (pcs)
Heatshrink Protector Tube 19/6-150 2
Fiber Optic Splice Sleeve   6
Label   1
Cable Tie   4
Tinfoil Paper   2
Sand Paper   1
Tape   1
PVC Protect Tube   1







Pictures:

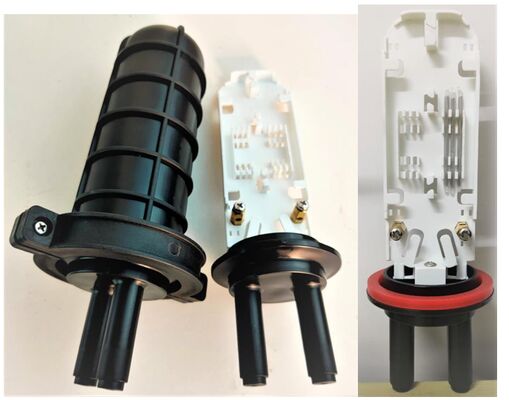

PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports 0

PP.ABS Fiber Optic Splice Closure -30°C ~ +60°C with 6 round ports 1









label:

de bijlage van de vezellas,

Vezel Optische Gezamenlijke Sluiting,

Koepel Fiber Optic Splice Sluiting
